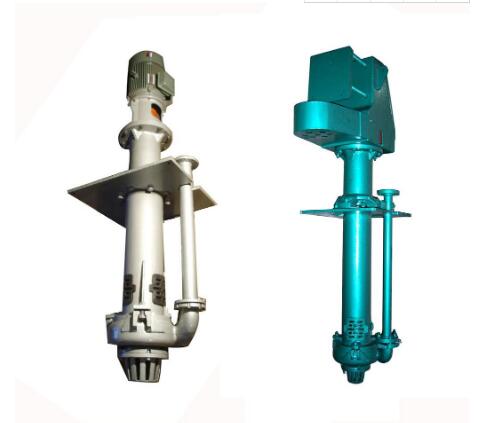

ZJL型液下渣漿泵
1.特點和用途: ZJL型液下泵為立式離心渣漿泵，浸入液下，用于輸送磨蝕性、粗顆粒、高濃度渣漿。不需要任何軸封和軸封水，在吸入量不足的工況下也能正常工作。 ZJL型泵過流部件由耐磨金屬制成。適用于輸送磨蝕性渣漿。
2. 型號意義：
40ZJL
40—泵吐出口直徑（mm)
ZJ—渣漿泵
L—立式
3. 性能參數表：
型號 | 轉速 r/min | 清水性能參數 | 配套電機參數 | ||||
流量m3/h | 揚程m | 軸功率kW | 效率% | 電機型號 | 功率/電壓 | ||
150ZJL-A35 | 980 | 198 | 17.9 | 15.3 | 63.1 | Y250M-6 V1 | 37/380 |
322 | 13.2 | 17.5 | 68.1 | ||||
364 | 12.1 | 18.0 | 66.8 | ||||
730 | 147 | 10.0 | 6.3 | 63.1 | Y200-8 V1 | 15/380 | |
247 | 7.3 | 7.2 | 68.1 | ||||
271 | 6.7 | 7.4 | 66.8 | ||||
590 | 119 | 6.5 | 3.3 | 63.1 | Y160L-6 B3 | 11/380 | |
200 | 4.8 | 3.8 | 68.1 | ||||
219 | 4.4 | 3.9 | 66.8 | ||||
100ZJL-A34 | 1480 | 157 | 36.8 | 26.1 | 60.2 | Y255M-4 V1 | 45/380 |
214 | 32.6 | 29.2 | 65.1 | ||||
293 | 24.4 | 33.5 | 58.2 | ||||
970 | 103 | 15.8 | 7.4 | 60.2 | Y180L-6 V1 | 15/380 | |
140 | 14.0 | 8.2 | 65.1 | ||||
192 | 10.5 | 9.4 | 58.2 | ||||
80ZJL-A36 | 1480 | 105 | 45.5 | 25.0 | 52.1 | Y255M-4 V1 | 45/380 |
144 | 41.4 | 27.9 | 58.2 | ||||
201 | 32.5 | 32.8 | 54.2 | ||||
970 | 69 | 19.5 | 7.0 | 52.1 | Y180L-6 V1 | 15/380 | |
94 | 17.8 | 7.8 | 58.2 | ||||
132 | 14.0 | 9.3 | 54.2 | ||||
65ZJL-A30 | 1470 | 38 | 34.7 | 8.2 | 43.7 | Y180M-4 V1 | 18.5/380 |
58 | 31.9 | 9.7 | 51.9 | ||||
98 | 26.0 | 13.4 | 51.7 | ||||
960 | 25 | 14.8 | 2.3 | 43.7 | Y132M2-6 B5 | 5.5/380 | |
38 | 13.6 | 2.7 | 51.9 | ||||
64 | 11.1 | 3.7 | 51.7 | ||||
50ZJL-A20 | 1440 | 17 | 10.7 | 1.4 | 34.9 | Y112M-4 B5 | 4/380 |
25 | 9.2 | 1.6 | 38.6 | ||||
38 | 5.9 | 2.0 | 31.2 | ||||
910 | 11 | 4.3 | 0.4 | 34.9 | Y90L-6 B5 | 1.1/380 | |
16 | 3.7 | 0.4 | 38.6 | ||||
24 | 2.4 | 0.5 | 31.2 | ||||
40ZJL-A25 | 1440 | 10.1 | 21.5 | 2.3 | 26.1 | Y132S-4 V1 | 5.5/380 |
18.4 | 19.0 | 2.6 | 36.6 | ||||
22.9 | 16.8 | 2.8 | 37.6 | ||||
910 | 6.4 | 8.6 | 0.6 | 27.9 | Y90L-6 V1 | 1.1/380 | |
11.6 | 7.6 | 0.7 | 42.4 | ||||
14.5 | 6.7 | 0.7 | 44.6 | ||||
40ZJL-A21 | 1440 | 9.5 | 17.0 | 1.6 | 27.9 | Y112M-4 V1 | 4.0/380 |
20.3 | 15.3 | 2.0 | 42.4 | ||||
25.9 | 14.1 | 2.2 | 44.6 | ||||
910 | 6.0 | 6.8 | 0.4 | 27.9 | Y90L-6 V1 | 1.0/380 | |
12.8 | 6.1 | 0.5 | 42.4 | ||||
16.4 | 5.6 | 0.6 | 44.6 | ||||
